Inference with Claudie
In this blog post, we’ll walk through how to connect an on-premise server, equipped with custom hardware, with the AWS cloud provider, forming a hybrid cluster, and further use this infrastructure for running an AI workload.
Since our on-premise hardware is behind a NAT and lacks a public IP address, a requirement for being part of a Claudie infrastructure, we’ll use Tailscale to securely connect our local hardware to the rest of the infrastructure.
Prerequisite
An active AWS account enabled and access credentials as an accesskey and a secretkey. For more info, see docs.
You can use any provider listed here. If your preferred provider isn’t listed, let us know and we’ll add it.Active Tailscale account (free plan is all we need)
Kind or minikube binaries to run Claudie management cluster (can be deployed on a local machine)
On-premise hardware with an Ubuntu 24.04 LTS server with root access
kubectl installed for managing Kubernetes clusters.
Setting up environment
First, we need to deploy Claudie in our kind-based Kubernetes management cluster (referred to as the management cluster from here on).
$ kind create cluster --name mgmt-cluster
Installing Claudie is straightforward — just run the following commands:
$ kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.12.0/cert-manager.yaml $ kubectl apply -f https://github.com/berops/claudie/releases/download/v0.9.14/claudie.yaml
After a few seconds, you should see running pods in the management cluster
kubectl get pod -n claudie NAME READY STATUS RESTARTS AGE ansibler-66f6b88fb5-wdzz4 1/1 Running 0 1m builder-796f74f85f-8k4np 1/1 Running 0 1m claudie-operator-5db8f6bf65-vj6c4 1/1 Running 0 1m dynamodb-6888c86497-sch9d 1/1 Running 0 1m kube-eleven-56bd55576-6n8bl 1/1 Running 0 1m kuber-cc7755f45-2rjp2 1/1 Running 0 1m manager-bdcb4dc58-bn6hb 1/1 Running 0 1m minio-0 1/1 Running 0 1m minio-1 1/1 Running 0 1m minio-2 1/1 Running 0 1m minio-3 1/1 Running 0 1m mongodb-6d59c69c99-t2w65 1/1 Running 0 1m terraformer-6485b876d6-46znn 1/1 Running 0 1m
Since our GPU server isn’t publicly accessible, we need to establish network connectivity between the management cluster and the on-premise GPU server. To achieve this, we set up a Tailscale VPN between the two environments. This allows the management cluster to communicate with the GPU server over a private network securely. We followed this tutorial to deploy Tailscale on both the GPU server and the computer running kind with management cluster.
After installing Tailscale, we bring up the VPN by running tailscale up on each machine and completing the authentication process via the link provided in the terminal.

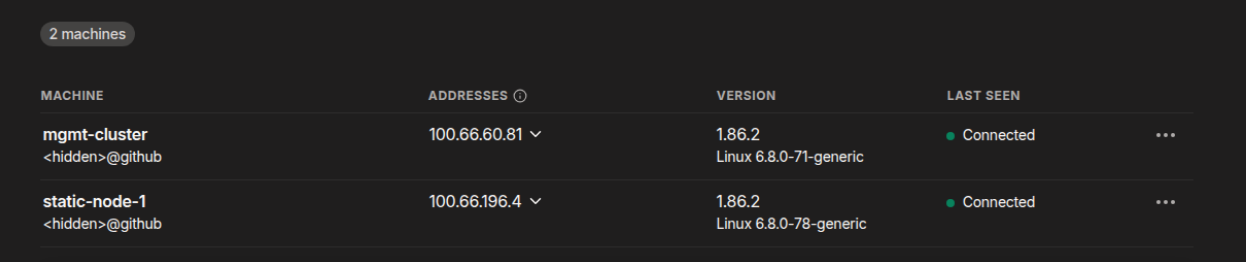

Once authenticated, you should see both machines, your management cluster node and the GPU server, listed in the Tailscale dashboard as connected devices.
Tailscale dashboard
Next, we need to generate an SSH key pair for the root user on the management cluster and copy the public key to the GPU server. This enables passwordless SSH access between the two machines.
Once the public key is added to the GPU server’s authorized_keys, you should be able to SSH into it from the management cluster without being prompted for a password.
At this stage, Claudie is deployed on the Kubernetes management cluster, and secure SSH access to the on-premise GPU server is established. We can move on to build hybrid-cloud with AWS.
Management cluster GPU server connection
Creating a hybrid-cloud cluster with Claudie
To create a hybrid-cloud cluster, the first step is to define the credentials for accessing AWS provider within the management cluster.
$ kubectl create secret generic aws-secret \ --namespace=claudie\ --from-literal=accesskey='<YOUR AWS ACCESS KEY >' \ --from-literal=secretkey='<YOUR AWS SECRET KEY>'
We also need to store the previously generated private SSH key as a Kubernetes secret in the management cluster.
$ kubectl create secret generic static-node-key \ --namespace=claudie \ --from-file=privatekey=private.pem
Following that, we define our infrastructure using a YAML manifest. This manifest serves as a template that Claudie will use to provision and configure the entire infrastructure.
apiVersion: claudie.io/v1beta1
kind: InputManifest
metadata:
name: aws-hybrid-cloud
labels:
app.kubernetes.io/part-of: claudie
spec:
providers:
# Previously defined credentials to AWS
- name: aws
providerType: aws
templates:
repository: "https://github.com/berops/claudie-config"
path: "templates/terraformer/aws"
tag: "v0.9.15"
secretRef:
name: aws-secret
namespace: claudie
nodePools:
dynamic:
- name: loadbalancer
providerSpec:
# Name of the provider instance.
name: aws
# Region of the nodepool.
region: eu-central-1
# Zone of the nodepool
zone: eu-central-1a
# For testing purposes, we define only one controller node
count: 1
# Machine type name.
serverType: t3.medium
# OS image name.
image: ami-07eef52105e8a2059
- name: control-node
providerSpec:
# Name of the provider instance.
name: aws
# Region of the nodepool.
region: eu-central-1
# Zone of the nodepool
zone: eu-central-1a
# For testing purposes, we define only one controller node
count: 1
# Machine type name.
serverType: t3.medium
# OS image name.
image: ami-07eef52105e8a2059
- name: compute-node
providerSpec:
# Name of the provider instance.
name: aws
# Region of the nodepool.
region: eu-central-1
# Zone of the nodepool
zone: eu-central-1a
# Define GPU autoscaling
autoscaler:
min: 0
max: 20
# GPU machine type name.
serverType: g4dn.xlarge
# OS image name
image: ami-07eef52105e8a2059
# Define num of GPUs serverType has
machineSpec:
nvidiaGpu: 1
static:
# On-premises hardware
- name: compute-static
nodes:
# The IP address assigned to our GPU server by Tailscale.
- endpoint: "100.66.196.4"
secretRef:
name: static-node-key
namespace: claudie
kubernetes:
clusters:
- name: hybrid-cluster
# Deployed Kubernetes version
version: v1.34.0
# Internal hybrid-cloud network
network: 192.168.2.0/24
pools:
control:
- control-node
compute:
- compute-node
- compute-static
# Loadbalancer definition
loadBalancers:
roles:
# Kubernetes API
- name: apiserver
protocol: tcp
port: 6443
targetPort: 6443
targetPools:
- control-node
# API endpoint for AI model
- name: llm-api
protocol: tcp
# Frontend port on LB
port: 80
# NodePort where LB will forward traffic to backends
targetPort: 30143
targetPools:
- compute-node
- compute-static
clusters:
- name: apiserver-lb
roles:
- apiserver
- llm-api
# DNS configuration for our cluster
dns:
dnsZone: aws.e2e.claudie.io
provider: aws
hostname: demo-llm
targetedK8s: hybrid-cluster
pools:
- loadbalancer
In the provided manifest, we specify the deployment of one loadbalancer, one Kubernetes control plane node (without GPU), and a dynamic pool of 0 to 20 AWS GPU instances that scale based on workload demands. Additionally, our on-premise GPU server is integrated into the cluster, forming a hybrid-cloud setup.
Notice that our domain will be hosted on Amazon route53 service, and the name for our AI model will be demo-llm.aws.e2e.claudie.io. For this test deployment, we omitted HTTPS.
We deploy this manifest and wait for the deployment to complete. We can monitor the cluster’s stage by running watch command:
$ kubectl -n claudie create -f manifest.yaml
$ watch 'kubectl get inputmanifests.claudie.io aws-hybrid-cloud -ojsonpath='{.status}' | jq .'
or for more detailed information, watch logs in builder pod:
k logs -f -l app.kubernetes.io/name=builder
To view the deployed hybrid cloud cluster, we export the kubeconfig and then run kubectl get nodes.
$ kubectl get secrets \
-n claudie -l claudie.io/output=kubeconfig \
-o jsonpath='{.items[0].data.kubeconfig}' | base64 -d > my-super-cluster-kubeconfig.yaml
$ kubectl --kubeconfig ./my-super-cluster-kubeconfig.yaml get nodes -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP NAME EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
compute-static-01 Ready <none> 7m51s v1.34.0 192.168.2.2 <none> Ubuntu 24.04.3 LTS 6.14.0-1014 containerd://1.7.27
control-node-ledzbpa-01 Ready control-plane 10m v1.34.0 192.168.2.1 <none> Ubuntu 24.04.1 LTS 6.8.0-1021-aws containerd://1.7.27
As shown in the output above, we have one AWS control plane node and our on-premise GPU server successfully connected, with communication established over the 192.168.2.0/24 network.
We don’t see any AWS GPU nodes yet because the autoscaler is configured with a minimum of 0 nodes, and so far, no workloads have been deployed.

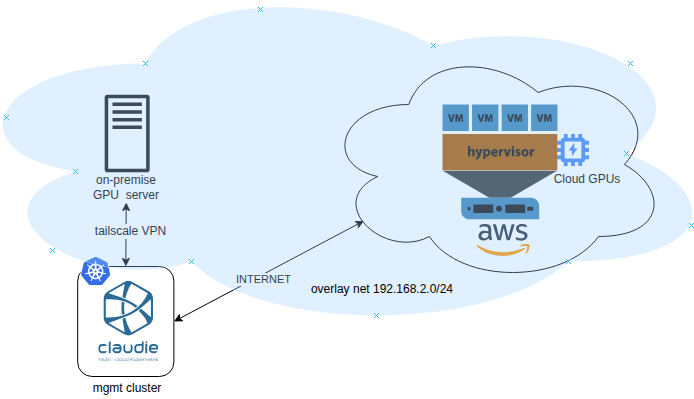

Claudie hybrid-cloud infrastructure
Deploying the GPU operator
After the InputManifest was successfully built by Claudie, we deploy the GPU Operator to discover nodes containing GPUs and will install the necessary drivers and packages to run GPU workloads.
Firstly, we create a namespace for the gpu-operator and label the namespace for the operator to set the enforcement policy to privileged.
$ kubectl create ns gpu-operator $ kubectl label --overwrite ns gpu-operator \ pod-security.kubernetes.io/enforce=privileged
Next, we add the Nvidia helm repository and install the operator.
$ helm repo add nvidia https://helm.ngc.nvidia.com/nvidia $ helm repo update $ helm install --wait --generate-name \ -- version v25.3.4 -n gpu-operator --create-namespace \ nvidia/gpu-operator
We wait for the pods in the gpu-operator namespace to be ready, and after that, we can check if GPUs can be used and on which node.
$ kubectl get nodes -o json | jq -r '.items[] | {name:.metadata.name, gpus:.status.capacity."nvidia.com/gpu"}'
{
"name": "compute-static-01",
"gpus": "1"
}
{
"name": "control-node-ledzbpa-01",
"gpus": null
}
From the output above, we can see that the GPU Operator correctly identifies our on-premises node that has one GPU installed.
Install Kserve
For deploying and testing machine learning models on Kubernetes, we will use the Kserve open-source project. With the Kserve, we will install Envoy Gateway API to manage ingress and egress traffic in Kubernetes clusters.
$ kubectl apply -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.2.1/standard-install.yaml $ helm install eg oci://docker.io/envoyproxy/gateway-helm --version v1.5.0 -n envoy-gateway-system --create-namespace
Then, create a GatewayClass and Gateway resource to expose the InferenceService.
apiVersion: v1
kind: Namespace
metadata:
labels:
kubernetes.io/metadata.name: kserve
name: kserve
---
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
name: envoy
spec:
controllerName: gateway.envoyproxy.io/gatewayclass-controller
---
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
name: kserve-ingress-gateway
namespace: kserve
spec:
gatewayClassName: envoy
# Reference to the EnvoyProxy custom resource that defines NodePorts and other data plane settings
infrastructure:
parametersRef:
group: gateway.envoyproxy.io
kind: EnvoyProxy
name: envoy-proxy
listeners:
- name: http
protocol: HTTP
port: 80
allowedRoutes:
namespaces:
from: All
- name: https
protocol: HTTPS
port: 443
tls:
mode: Terminate
certificateRefs:
- kind: Secret
name: kserve-certificate
namespace: kserve
allowedRoutes:
namespaces:
from: All
infrastructure:
labels:
serving.kserve.io/gateway: kserve-ingress-gateway
---
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: EnvoyProxy
metadata:
name: envoy-proxy
namespace: kserve
labels:
envoy-proxy: claudie-node-port
spec:
provider:
type: Kubernetes
kubernetes:
envoyService:
externalTrafficPolicy: Cluster
labels:
envoy-proxy: claudie-node-port
type: NodePort
patch:
type: StrategicMerge
value:
spec:
ports:
- name: http-80
nodePort: 30143
port: 80
protocol: TCP
The above manifest deploys a service of type NodePort in namespace envoy-gateway-system through which traffic will be later forwarded to kserve pod on port 80.
Now we will continue by installing Kserve CRD and Kserve controller
$ helm install kserve-crd oci://ghcr.io/kserve/charts/kserve-crd \ --version v0.15.0 \ --namespace kserve $ helm install kserve oci://ghcr.io/kserve/charts/kserve \ --version v0.15.0 \ --namespace kserve \ --set kserve.controller.deploymentMode=RawDeployment \ --set kserve.controller.gateway.ingressGateway.enableGatewayApi=true \ --set kserve.controller.gateway.ingressGateway.kserveGateway=kserve/kserve-ingress-gateway \ --set kserve.controller.gateway.domain=demo-llm.aws.e2e.claudie.io
This will deploy the kserve-controller-manager, which manages HTTPRoutes and horizontal pod autoscaling based on CPU usage. Later, we will configure it to monitor GPU utilization using KEDA.
For more details on the KServe architecture used in our setup, see the official doc.
Deploying and autoscaling LLM
To enable dynamic cluster scaling, we need to deploy GPU-based workloads. As a demonstration, we’ll deploy the Qwen2.5–0.5B-Instruct-AWQ language model, configure the cluster to monitor GPU utilization, and observe the autoscaler in action.
Create an InferenceService
Creating InferenceService will deploy the Qwen LLM model, which will be served using KServe’s Hugging Face runtime with vLLM backend for optimized performance. We will deploy InferenceService in a separate namespace called kserve-qwen.
$ kubectl create ns kserve-qwen
apiVersion: "serving.kserve.io/v1beta1"
kind: "InferenceService"
metadata:
name: "qwen-llm"
namespace: kserve-qwen
spec:
predictor:
model:
modelFormat:
name: huggingface
args:
- --model_name=qwen
storageUri: "hf://Qwen/Qwen2.5-0.5B-Instruct-AWQ"
resources:
limits:
cpu: "2"
memory: 14Gi
nvidia.com/gpu: "1"
requests:
cpu: "1"
memory: 4Gi
nvidia.com/gpu: "1"
After applying the InferenceService we will wait until we see a ready status. This might take a few minutes.
$ kubectl get isvc -n kserve-qwen NAMESPACE NAME URL READY PREV LATEST PREVROLLEDOUTREVISION LATESTREADYREVISION AGE kserve-qwen qwen-llm http://qwen-llm-kserve-qwen.demo-llm.aws.e2e.claudie.io True 9m48s
From the above output, we can see that InferenceService generated the URL http://qwen-llm-kserve-qwen.demo-llm.aws.e2e.claudie.io that we will later use to perform inference. However, we need to create a CNAME record in our DNS provider (AWS, in our case) that points to the A record demo-llm.aws.e2e.claudie.io.
Deploying this InferenceService, we still won’t be able to call LLM, because our Claudie Loadbalancer is using proxy protocol to keep the origin IP and port of the caller. For that reason, we will also need to enable proxy protocol in Envoy Gateway.
apiVersion: gateway.envoyproxy.io/v1alpha1
kind: ClientTrafficPolicy
metadata:
name: client-traffic-config
namespace: kserve
spec:
enableProxyProtocol: true
targetRefs:
- group: gateway.networking.k8s.io
kind: Gateway
name: kserve-ingress-gateway
Once the ClientTrafficPolicy has been applied (this may take a few seconds), we can verify the inference functionality using a curl command that calls the previously created CNAME record.
$ curl -v -H "Content-Type: application/json" http://qwen-llm-kserve-qwen.demo-llm.aws.e2e.claudie.io/openai/v1/chat/completions -d @./chat-input.json
We use the following chat-input.json file as the input.
$ cat <<EOF > "./chat-input.json"
{
"model": "qwen",
"messages": [
{
"role": "system",
"content": "You are a helpful assistant that provides long answers."
},
{
"role": "user",
"content": "What is the difference between Kubernetes Deployment and StatefulSet"
}
],
"max_tokens": 1500,
"temperature": 0.5,
"stream": false
}
EOF
Deploying the InferenceService, we also deployed Horizontal Pod Autoscaling. However, by default, it only monitors CPU utilization, which is not adequate for our workload.
$ kubectl get hpa -n kserve-qwen NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE qwen-llm-predictor Deployment/qwen-llm-predictor cpu: 1%/80% 1 1 1 13m
Installing KEDA for GPU autoscaling
To enable cluster autoscaling based on GPU memory utilization, we’ll export metrics from the already-installed GPU Operator to Prometheus. Based on a defined memory threshold, new pods will be scheduled, which, in turn, will trigger the provisioning of a new node.
Following the KEDA installation, we add the helm repo and install charts:
$ helm repo add kedacore https://kedacore.github.io/charts $ helm repo update $ helm install keda kedacore/keda \ --version 2.17.2 \ --namespace keda --create-namespace
To install Prometheus, we use the kube-prometheus-stack helm repo:
$ helm repo add prometheus-community https://prometheus-community.github.io/helm-charts $ helm repo update $ helm inspect values prometheus-community/kube-prometheus-stack > prometheus-values.yaml
Running the above command, we created a prometheus-values.yaml file where we modify and add additional configuration for the GPU operator.
serviceMonitorSelectorNilUsesHelmValues: false
additionalScrapeConfigs: |
- job_name: gpu-metrics
scrape_interval: 1s
metrics_path: /metrics
scheme: http
kubernetes_sd_configs:
- role: endpoints
namespaces:
names:
- gpu-operator
relabel_configs:
- source_labels: [__meta_kubernetes_endpoints_name]
action: drop
regex: .*-node-feature-discovery-master
- source_labels: [__meta_kubernetes_pod_node_name]
action: replace
target_label: kubernetes_node
After that, we install kube-prometheus-stack with our additional GPU scrape config.
$ helm install prometheus-community/kube-prometheus-stack \ --version 77.11.1 \ --create-namespace --namespace prometheus \ --generate-name \ -f prometheus-values.yaml
Next, we define a ScaledObject (see KEDA documentation for more details) to specify the parameter to monitor, its threshold, and the conditions for autoscaling. For a full list of metrics available from the NVIDIA GCGM exporter, visit official NVIDIA docs.
apiVersion: keda.sh/v1alpha1
kind: ScaledObject
metadata:
name: qwen-llm-predictor-scaled-object
namespace: kserve-qwen
annotations:
scaledobject.keda.sh/transfer-hpa-ownership: "true"
spec:
advanced:
horizontalPodAutoscalerConfig:
name: qwen-llm-predictor
scaleTargetRef:
name: qwen-llm-predictor
minReplicaCount: 1
maxReplicaCount: 20
triggers:
- type: prometheus
metadata:
serverAddress: http://prometheus-operated.prometheus:9090
metricName: gpu-util
threshold: "60"
query: sum(avg_over_time(DCGM_FI_DEV_GPU_UTIL{pod=~"qwen-llm-predictor.*"}[30s]))
After applying ScaledObject resource, we will transfer ownership of the existing HPA to our defined ScaledObject with custom triggers.
$ kubectl get hpa -n kserve-qwen NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE qwen-llm-predictor Deployment/qwen-llm-predictor cpu: 1%/80% 1 1 1 3h16m $ kubectl apply -f scaledobject.yaml $ kubectl get hpa -n kserve-qwen NAME REFERENCE TARGETS MINPODS MAXPODS REPLICAS AGE keda-hpa-gpu-dcgm-scaled-object Deployment/qwen-llm-predictor 0/95 (avg) 1 20 1 11m
System Behavior Under High Demand
With Claudie and the InferenceService deployed alongside a ScaledObject configured to monitor GPU memory usage per node, we can now run a workload that utilizes the GPU. This will trigger Claudie’s autoscaler to scale out by adding new nodes.
We will simulate a high workload by running the previously defined curl command in a loop from multiple clients, while monitoring events in the kserve-qwen namespace.
$ curl -v -H "Content-Type: application/json" http://qwen-llm-kserve-qwen.demo-llm.aws.e2e.claudie.io/openai/v1/chat/completions -d @./chat-input.json
$ kubectl events -n kserve-qwen -w
0s (x4 over 2m28s) Normal ScaledObjectReady ScaledObject/qwen-llm-predictor-scaled-bject ScaledObject is ready for scaling
0s (x2 over 34s) Warning FailedScheduling Pod/qwen-llm-predictor-7ddb55c8f4-lt9gq 0/2 nodes are available: 1 Insufficient nvidia.com/gpu, 1 node(s) had untolerated taint {node-role.kubernetes.io/control-plane: }. preemption: 0/2 nodes are available: 1 No preemption victims found for incoming pod, 1 Preemption is not helpful for scheduling.
0s Normal TriggeredScaleUp Pod/qwen-llm-predictor-7ddb55c8f4-lt9gq pod triggered scale-up: [{compute-node-dwmov7w 0->1 (max: 20)}]
By inspecting the autoscaler pod in our kind management cluster we can see that Claudie detects the need and initiates scheduling of new GPU nodes.
$ kubectl logs -f autoscaler-hybrid-cluster-qpk0iqu-6ff7fc6b88-69hpd 2025-09-26T08:28:51Z INF Got NodeGroupIncreaseSize request for nodepool by 1 cluster=hybrid-cluster-qpk0iqu module=autoscaler-adapter-hybrid-cluster nodepool=compute-node-dwmov7w
In management cluster we can verify that indeed we now have a new AWS node compute-node-dwmov7w-01.
$ kubectl --kubeconfig ./my-super-cluster-kubeconfig.yaml get node NAME STATUS ROLES AGE VERSION compute-node-dwmov7w-01 Ready <none> 107s v1.32.0 compute-static-01 Ready <none> 39m v1.32.0 control-node-4ar7hnw-01 Ready control-plane 41m v1.32.0
Note, adding a new auto-scheduled node may take several minutes. This process involves creating a virtual machine, installing required packages, and deploying necessary DaemonSets, such as GPU operators, CNI drivers, CSI drivers, etc..
The total provisioning time can also vary based on several factors, primarily network bandwidth and the disk performance of the attached virtual machine.
Wrapping up
In this post, we demonstrated how Claudie can be used to connect multiple nodes, whether they’re on-premise hardware or cloud-based VMs, into a single unified Kubernetes cluster.
With the help of the autocluster scheduler, we also showed how to scale up the cluster automatically. Scale down is triggered when nodes remain unneeded for more than 10 minutes. You can find more details about how autoscaling works in Claudie in this article.
